Getting Error while authenticating Microsoft

ravikavala

This is Ravi and iam new to osTicket. deployed osTicket 1.17.4 in ubuntu 20.04 with php 8.0. with all plugins. installed oauth2 plugin and followed the instructions from here https://docs.osticket.com/en/latest/OAuth2/Microsoft%20Authentication%20(SSO)%20Guide.html

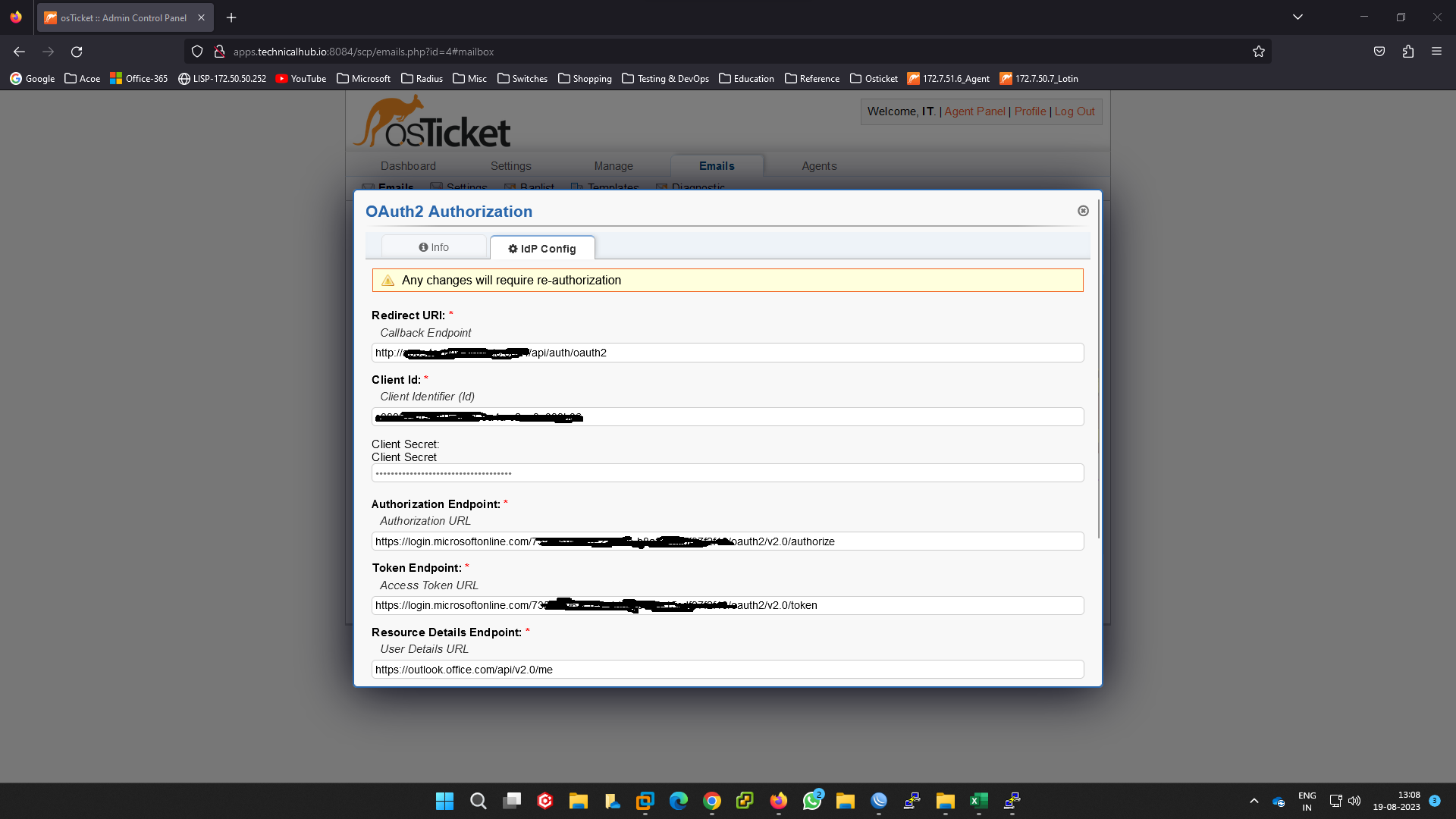

Admin panel -> Email -> <mymail>@domain.com (office 365 organization mail) -> remote mail box -> Config -> idp config here i have provided neccessary links from azure tenant (which created app registration).

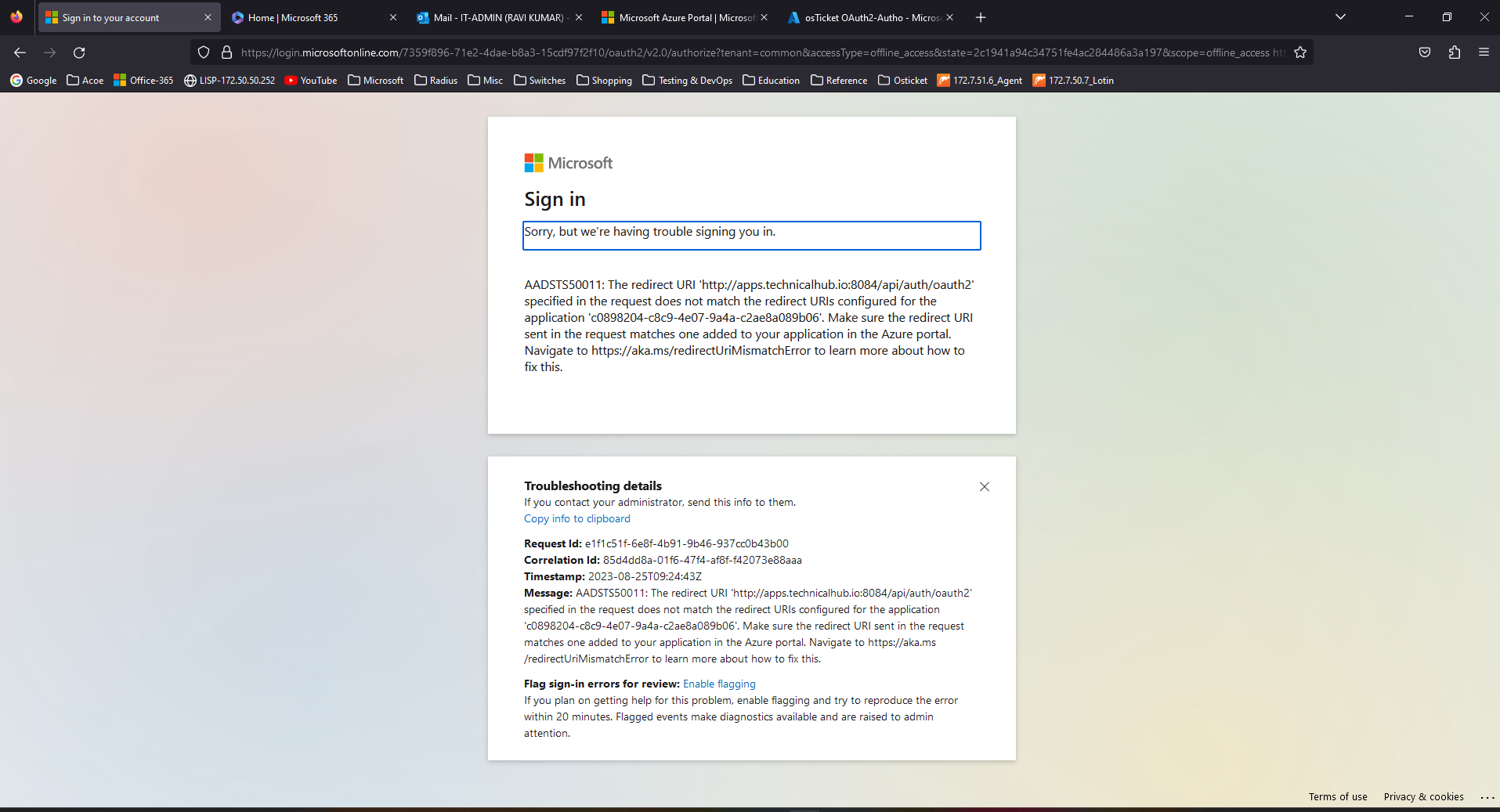

when i am trying to submit iam getting login.microsoftonline.com and given the username and password at the next window, i am getting error. attaching screen shots error & links...

what could i mistaken...

and what should be the Redirect URl: Calllback Endpoint

KevinTheJedi

ravikavala

You can’t use HTTP you must use HTTPS as the Redirect URI and the URI you are submitting the popup from. Or you can use localhost if you have to use HTTP.

Cheers.

ravikavala

Thankyou Kevin,

But as i already told you i am new to this. can you explain detail.... i am getting error message if i give http://localhost/api.... in osticket redirect url...

i need to install https .. ?
what is the redirect url should be..my localhost or azure tenent id .. ?
azure app registration -> authentication -> web address and redirect url in osticket should be same .. ?

This would be great help to me...thank you...

KevinTheJedi

ravikavala

Yes.
It should be your domain name plus the path to the API. This field is initially auto-filled in osTicket when configure OAuth2.
Yes.

Cheers.
